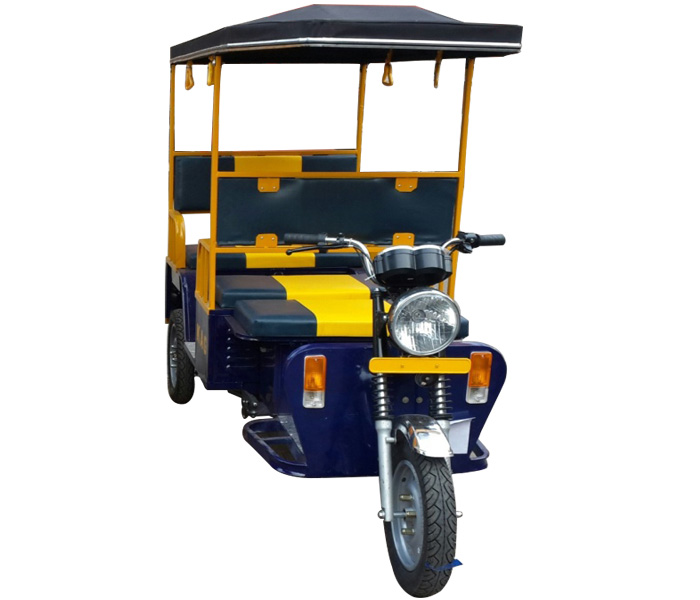

E-RICKSHAW

Technical Specifications
Details
SEATING CAPACITY 4+1(DRIVER)
WEIGHT CAPACITY 700 KG
MOTOR 900 W(BLDC) - CY
BATTERY 48 V 100AMP EASTMAN/ANY ICAT APPROVED
POWER < 2000 W
SPEED < 25 KMPH

CON

TROLLER

24 TUBE
TYRES 3.00X12 (69-B) - RALCO
BRAKE MECHANICAL DRUM BRAKES(FRONT & REAR)
FRONT SUSPENSION HYDRAULIC SHOCKER WITH SPRING(27.5")
REAR SUSPENSION LEAF SPRING
CHASSIS TUBULAR(AUTO PAINT)
COLOUR BLUE & GOLDEN YELLOW
BATTERY BACKUP 90-100 KMPH (AFTER 35 CHARGES )
CHARGING TIME (9-10) HRS
DIGITAL SPEEDOMETER DISPLAY:
1. BATTERY STATUS
2. INDICATOR
3. BATTERY VOLT DISPLAY
4. SPEED
TRANSMISSION MODE TRANSAXLE
PARKING BRAKE YES
BATTERY BOX LOCK YES
DRIVER BOX SAFETY LOCK YES
OVERALL WEIGHT INCLUDING BATTERY - 330 KG EXCLUDING BATTERY - 216 KG
OVERALL SIZE LENGTH- 2750 MM, WIDTH- 950 MM, HEIGHT- 1750 MM
ROOF MATERIAL CANVAS
RIM (SA12.15X12) - ALLOY
DIFFERENTIAL 35" - CY
WARRANTY 1. BATTERY - 6 MONTHS
2. MOTOR - 6 MONTHS (MANUF. DEFFECT)
3. CONTROLLER - 6MONTHS (MANUF. DEFFECT)
4. CHARGER - 6 MONTHS

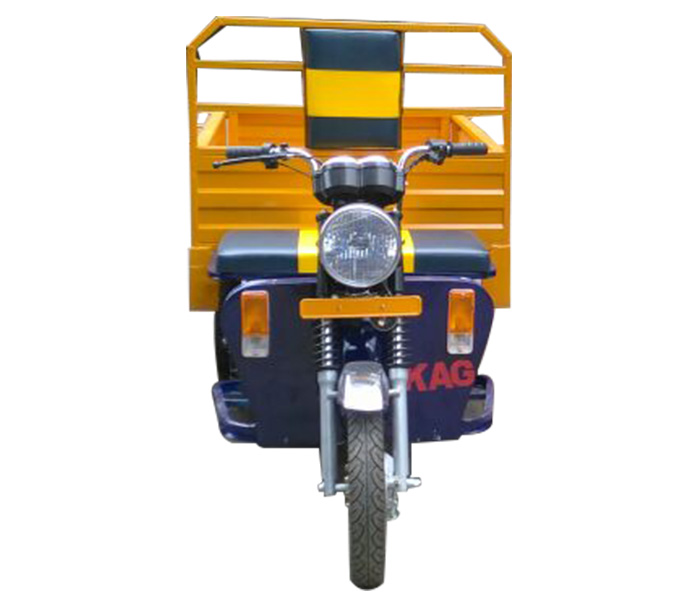

E-LOADER

Technical Specifications
Details
SEATING CAPACITY Driver + 1
WEIGHT CAPACITY 750 KG
MOTOR 1000 W(BLDC) - CY
BATTERY EASTMAN/ ICAT APPROVED BATTERY
CHARGER 48 V, 12 A - UTL/AXIOM
CONTROLLER 24 TUBE
TYRES 3.00X12 (69-B) - RALCO
BRAKE MECHANICAL DRUM BRAKES(FRONT & REAR)
FRONT SUSPENSION HYDRAULIC SHOCKER WITH SPRING(27.5")
REAR SUSPENSION LEAF SPRING
CHASSIS TUBULAR(AUTO PAINT)
COLOUR BLUE & GOLDEN YELLOW
BATTERY BACKUP 90-100 KMPH (AFTER 35 CHARGES )
CHARGING TIME (9-10) HRS
DIGITAL SPEEDOMETER DISPLAY:
1. BATTERY STATUS
2. INDICATOR
3. BATTERY VOLT DISPLAY
4. SPEED
TRANSMISSION MODE TRANSAXLE
PARKING BRAKE YES
BATTERY BOX LOCK YES
DRIVER BOX SAFETY LOCK YES
OVERALL WEIGHT INCLUDING BATTERY - 350 KG
EXCLUDING BATTERY - 236 KG
OVERALL SIZE LENGTH- 2750 MM
WIDTH- 950 MM
RIM (SA12.15X12) - ALLOY
DIFFERENTIAL 35" - CY
WARRANTY 1. BATTERY - 6 MONTHS
2. MOTOR - 6 MONTHS (MANUF. DEFFECT)
3. CONTROLLER--6MONTHS (MANUF. DEFFECT)
4. CHARGER -- 6 MONTHS
